Twin Spindles & Twin Turrets Turning Center GTS-150MMX series model shown

LIVE TOOLING TURRET

Live Tooling Turret

Servo drive live tooling turret with high precision curvic coupling tool indexing system provides quick tool change and indexing time. And make sure the rigidity of turret in any machining conditions.


Turret type T12 T6
Stations 12 12
Live tooling stations 12 6
Tool drive Live tooling tools rotate in working position only Live tooling tools rotate at
the same time

GTS series with optional T12 or T6 live tooling turret of different performance can easily meet your machining needs.

Ultimate C-axis Spindle

C-axis adopts super rigid Cf-axis with disk brake system, and with the FANUC servo motor generating 240 Nm ( cont. ) of torque it offers excellent surface finishes and accuracy. Plus, dynamic accuracy is within ± 0.02° even under heavy cutting condition.


     Models C-axis Output
GTS-150 120 Nm ( 88.50 ft-lb )
GTS-200 / 260 240 Nm ( 117.01 ft-lb )
[+]

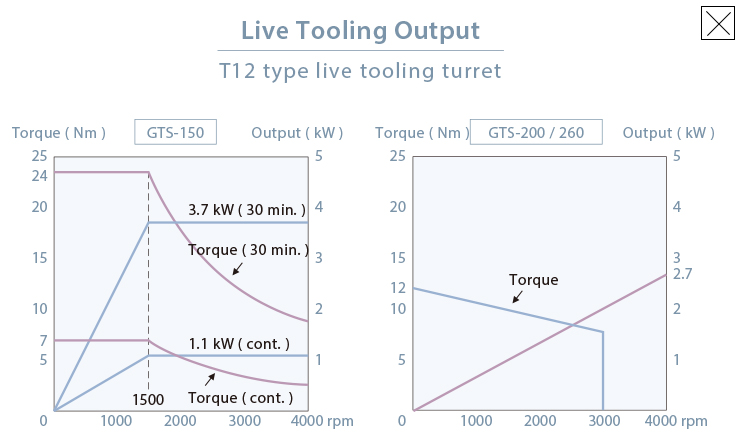

( Please contact with us for T6 type live tooling turret output diagram )
TWIN Y AXES CONTROL FUNCTION

The optional Y-axis control can achieve X, Y, Z and C axes simultaneously machining, which allows the series can work on Y-axis off center milling, drilling and tapping as well as improving the machining accuracy from a regular 3 axes simultaneously machining processes under certain condition.


     Models Y-axis Travel
GTS-150 60 ( ±30 ) mm [ 2.36" ( ±1.18" ) ]
GTS-200 120 ( ±60 ) mm [ 4.72" ( ±2.36" ) ]
GTS-260 120 ( ±60 ) mm [ 4.72" ( ±2.36" ) ]
y-axis

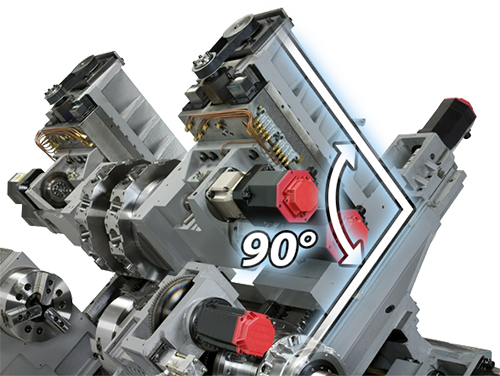

Low Center of Gravity with Orthogonal Design

Orthogonal design of Y & X axes saddle to keep the center of gravity of turret lay on the proper range of slide on the base to make sure the overall structural rigidity.

90-degree
Unique Y-axis Machining Capability

Side Milling


side-milling

Off-Center Troughing

off-center-troughing

Off-Center Drilling

off-center-drilling
High Precision Y-axis Machining Capability

Polar coordinate interpolation V.S Y-axis control

y-axis-control
  • The polar coordinate interpolation can work on troughing or contouring. X-axis reverses at cross point of the center point of workpiece and contour, which makes tool not able to be completely contouring and remains worse accuracy.
  • With Y-axis control, it can avoid the situation above and remain better accuracy.

O.D. Troughing

OD-troughing_1
  • Without featuring Y-axis, width of troughs are not perfectly parallel with worse accuracy.
OD-troughing_2
  • Featuring Y-axis, width of trough remains parallel with better accuracy.
