HIGH PERFORMANCE VERTICAL CNC TURNING CENTER

With 30 Years of experience in the manufacture of lathes. Goodway are pleased to introduce our GV-800 CNC Vertical Turning Center. Which combined ultra high power performance, super rigid construction and high speed machining for our GV-800 will provide turning and milling capacity for the dynamic demands of to-days market and onward into the future. With a maximum turning diameter of 32.2" ( 820mm ) by 25.5" ( 650mm ) long the GV-800 is ideal for the machining of large parts and heavy cutting conditions. The ‘C’ Axis and a live tooling turret enable “ One Hit Manufacturing” of suitable components.

Full surrounded guarding for a clean environment.

The use of slide-way covers protect all the bed-ways.

Environmentally friendly lube system provides the lubrication for the slide-ways and ball-screws.

Machine Design is based on Ergonomics, all so known as Human Factor Engineering is the science of refining the design of products to optimise machine for human use. This principle has been fully integrated into the design, from the ease of operation to the compact floor space, which gives a floor space saving of up to 50% over a conventional turning center design.

Designed for the easy loading of parts, the spindle nose to floor = 42.5" ( 1,080 mm ) & the spindle center line to the operator door = 19.8" ( 503 mm ).

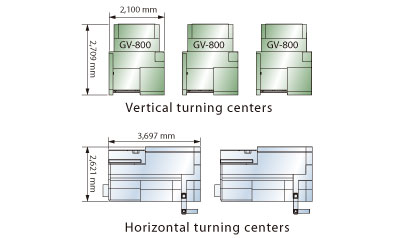

The compact body design and working are make the GV-800 Foot Print one of the smallest in its class.

Only 5.7m

2

Floor space

The spindle gear box lubrication integrity is monitored flow.

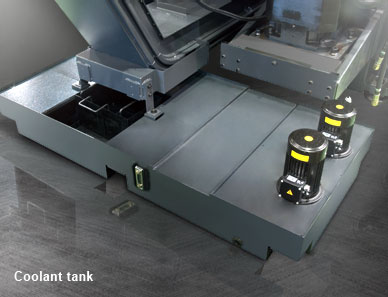

Easy maintenance independent coolant system and chip conveyor.
