The index position of the turret is by the large 320mm Diameter Curvic Coupling.

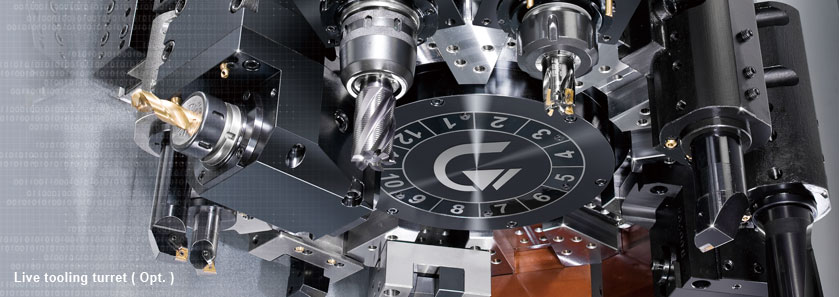

Available with straight and 90º Live Tooling Tool Holder.

Live tooling drive by FANUC Servo Motor.

GV-800 Cf-axis with FANUC αi Servo Motor with FANUC 1.0 million pulse super high resolution αi series pulsecoder provides ultimate performance for the C axis and with worm-gear drive an accuracy of 0.001º can be attained.

Working with the live tooling turret, the Cf-axis and disk brake system enables the machine to perform multiple tasks, such as drilling, tapping, and milling operations, including cylindrical and polar coordinate interpolations, resembling a 4th-axis rotary table on a machining center.

With the FANUC servo motor generating an ultra high resolution of 1.0 million pulses per spindle rotation and 1,800 N-M ( 1,327 ft-lb. ) of spindle torque ( Con. ), machined surface finishes are much superior than Cs-axis ( driven by spindle motor ) equipped machines. Plus, dynamic accuracy is within +/-0.02° even under heavy cutting loads.
