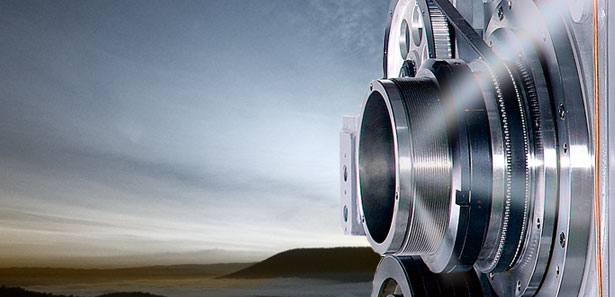

Ultimate Turning Power

With over 1,500 ft-lb of torque available on the low speed of the 2-speed gear head, turning tough material with big diameter is now a simple task.

The heavy-duty headstock is of one-piece casting reinforced with heat dispensing fins.

Standard rigid tapping feature provides high-speed precision tapping without the use of floating tap holders. Set-up is easier and depth of thread more accurate, permitting maximum productivity for tapping operations.

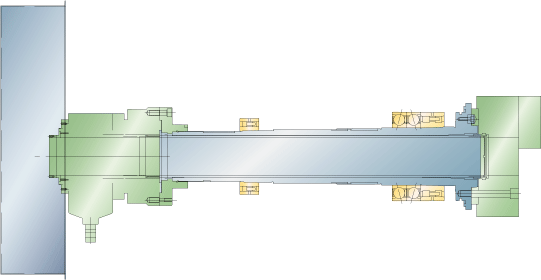

Spindle Dimension Drawing

Hydraulic chuck + Hydraulic cylinder

P4 grade ( Class 7 ) super-high precision bearings are directly assembled for maximum level of support and precision. Bearing configuration is designed for heavy-duty cutting with ultra-smooth performance and long term durability with a higher level of accuracy.

Front or Front + Rear Air Chuck Configurations

Top

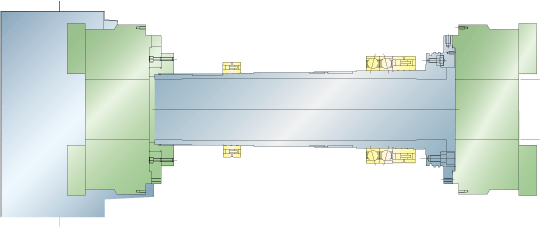

Front + Rear Chuck

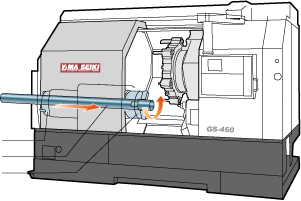

By installing air or manual chucks on both the front and rear of the spindle, it becomes possible to machine the ends of long workpieces. This configuration is especially useful in threading pipes.

Top

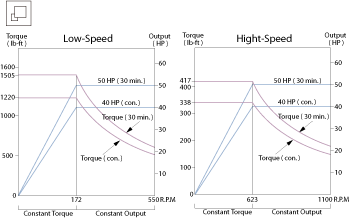

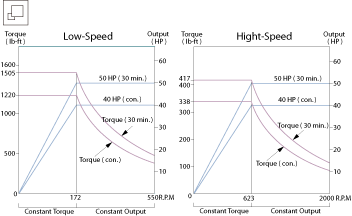

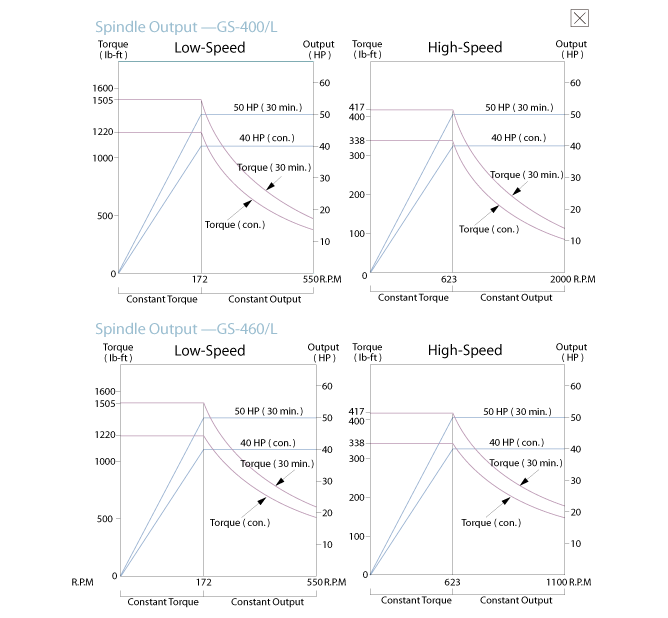

Spindle Output —GS-400/L

Spindle Output —GS-460/L
