YAMA SEIKI

SPINDLE BM 1400 BM 1600 BM 1800
Spindle taper CAT40 *1
Spindle configuration 10,000 / 12,000 / 15,000 rpm direct-drive *2

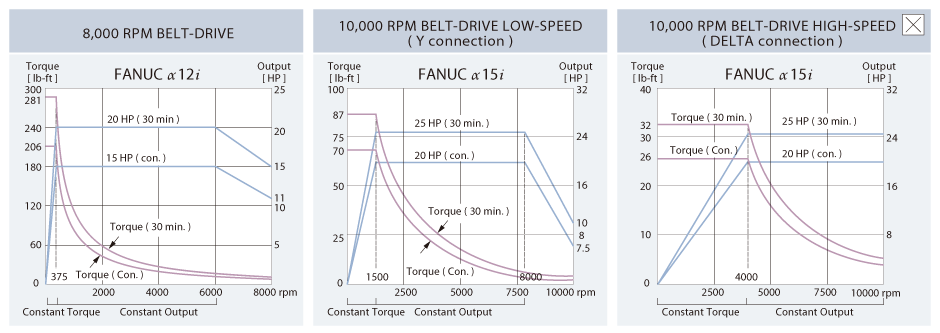

Spindle speed ranges Click here
Spindle motor
( cont. / 30min. )
Dist. from spindle nose
to table top		 200 ~ 900 mm ( 7.87" ~ 35.43" )
Dist. from spinle nose
to column		 900 mm ( 35.4" )

Specifications are subject to change without notice.

*1 : 50 Taper with model BM 1400 ~ BM 1800 are all standard.
*2 : CAT40 10,000, 12,000 or 15,000 rpm direct drive as an option.
