High Speed ATC System
BM series 24T arm type ATC system provide high speed tool exchange solution, and we also offer 30T / 40T arm type tool magazine to fulfill the variety of machining requirement.
Standard shortcut tool change function can shorten tool change time and increase working efficiency.
Ultra fast tool exchange system ( opt. )
24T Disc type tool magazine
High Effeciency Chip Disposal System
All series are equipped with 1 / 3 / 5 screw type chip auger according to the machine size, thus to provide high chip clearing efficiency.
The optional high pressure chips flush coolant system is also available.

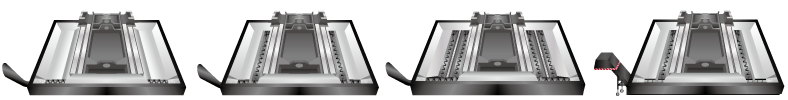

| Screw chip auger x1 | Screw chip auger x3 | Screw chip auger x5 | Chain type chip conveyor |
|---|---|---|---|
| BM-850 / BM-1020 / BM-1200 / BM-1460 |
BM-1400 / BM-1600 / BM-1800 | BM-2100 / BM-2500 | Optional |
High Efficiency Automatic Pallets Changer System
In order to lower the labor cost and meet the requirement of high speed mass production, BM850-APC adapted with four box way, combines with APC system, which provides the best produce solution for automobile industry, especially suitable for gearbox, inlet manifold, or others parts.
| Auto pallet changing time |
| 7 second |
|---|
| Repeatability between two tables |
| 0.00078" |
|---|
Table Size
Table rotating range
Table load capacity
| Model | BM850-APC |
|---|---|
| X / Y / Z axes travel | 850 / 600 / 600 mm ( 33.5" / 23.6" / 23.6" ) |
| Table size | 460 x 800 mm ( 18.1" x 31.5" ) |
| Table rotating range | 180˚ |
| Repeatability for each table | 0.01 mm ( 0.00039" ) |
| Repeatability between two tables | 0.02 mm ( 0.00079" ) |
| Table load capacity | 200 kg ( 441 lbs ) |
| Model | BM850-APC |
|---|---|
| Spindle taper | CAT40 / CAT50 ( Opt. ) |
| Spindle motor ( cont. / 30 min. ) |
7.5 / 11 kW ( 10 / 15 HP ) |
| Spindle speed | 8,000 rpm |
| X / Y / Z axes rapid feed rate | 24 / 24 / 20 m/min. ( 945 / 945 / 788 IPM ) |
| Cutting feed rate | 10 m/min. ( 394 IPM ) |
| Tool magazine capacity | 24 T |
