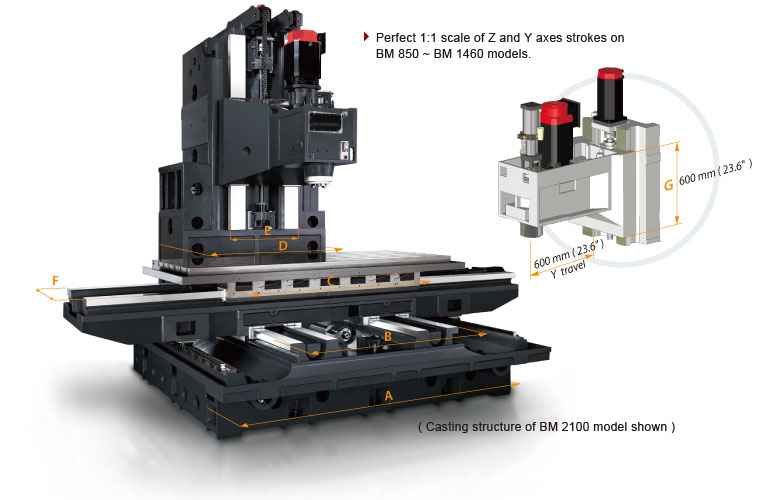

By using the Finite Element Method ( FEM ), optimal reinforce ribbings are directly cast into the one-piece bed structure. Together with the super-wide Y-shape column, mechanical rigidity has been increased by more than 45% when compared to conventional designs. The BM series is capable of performing super heavy-duty machining and maintain long-term super high-precision accuracy. More rigidity also means extended tool life.

Built to endure years and years of rigorous high production machining, the thermally balanced bed and casting components are of FC300 - MEEHANITE casting ( industry standard is FC200 ~ 250 ). FC300 grade cast iron is capable of withstanding much greater stress without deforming and provides maximum vibration dampening, which result in a machine that will outlast and outperform the competition.
