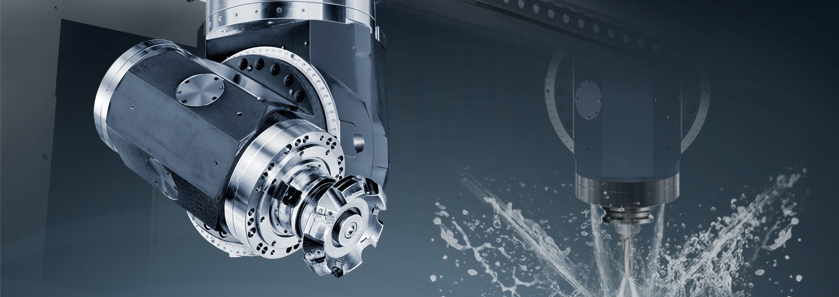

Automatic Milling Heads
The new generation milling heads designed and made by AWEA have comprehensive specifications and enhanced performance. Designed and built by AWEA for making seamless compatibility with the machines, enhancing reliability, performance, and accuracy all at the same time.
Higher rpm options and increased max.speed
Auto head changing and tool clamping available for the whole series
CTS available for the whole series
Automatic head clamp / tool clamp
C-axis automatic：5° / 2.5°
Max. speed：3,000 / 4,500 rpm
Max. output：22 kW ( 30 HP )
Optional CTS
Automatic head clamp / tool clamp
C-axis automatic：5° / 2.5°
Max. speed：3,000 / 4,500 rpm
Max. output：22 kW ( 30 HP )
Optional CTS
Automatic head clamp / tool clamp
Max. speed：3,000 / 6,000 rpm
Max. output：22 kW ( 30 HP )
Optional CTS
Automatic head clamp / tool clamp
Max. speed：3,000 / 4,500 rpm
Max. output：22 kW ( 30 HP )
Optional CTS

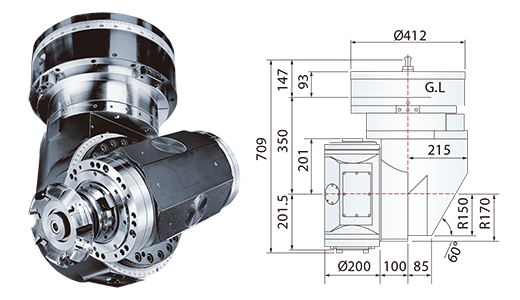

| A-axis | C-axis | |
|---|---|---|
| Indexing | Auto 1° / 2.5° / 5° | |
| Rotary angle | ± 110° | 0° ~ 360° ( Non-continuous ) |

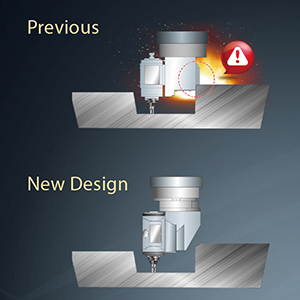

Compact layout design
The compact design reduces the inter ference between head and workpiece.

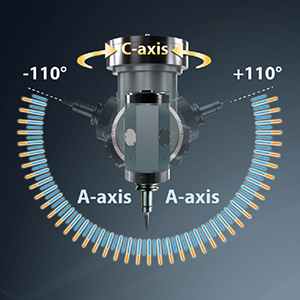

Finer degree indexing
A-axis degree indexing
⬛ 5° ⬛ 2.5° / 1°

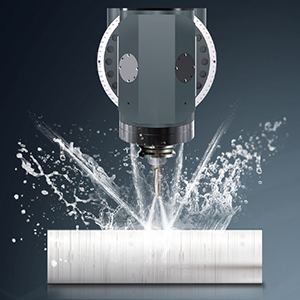

Better cooling and chip removal
Coolant nozzle around spindle
Coolant through spindle
