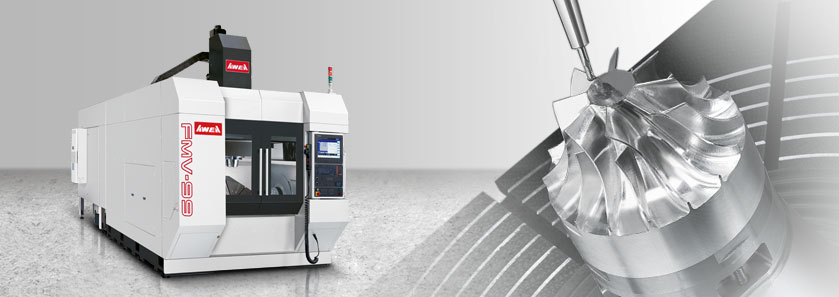

Innovative Technologies 5-Axis Gantry Type Machining Center
Five Axis Machining Center, FMV series, composed of advanced technologies & high quality machine structure, is capable of handling various applications in 5 axis simultaneous machining with expandable, compact design and at favorable price. FMV series is designed specifically for applications in aerospace, medical technology, 3C industry, die / mold machining in automobile industry and so on. Accuracy, cutting feedrate and table load capability of FMV series is superior than other machines in comparable level. FMV series can fulfill the cutting requirement for nowadays and the future demand as well.
| Models | FMV-99 |
|---|---|
| Max. X / Y / Z axes travel | 31.5" / 35.4" / 26.0" ( 800 / 900 / 600 mm ) |
| X / Y / Z axes rapids | 1,890 IPM ( 48 m/min. ) |
| Spindle motor output ( cont. / 30 min. ) | 35 HP ( 26 kW ) |
| Max. table load | 2,200 lb ( 1,000 kg ) |
| Swiveling range of table | -120° ~ +30° |
| Swiveling / Rotary speed of axis | A-axis : 30 / C-axis : 100 rpm |
Specifications are subject to change without notice.
Top

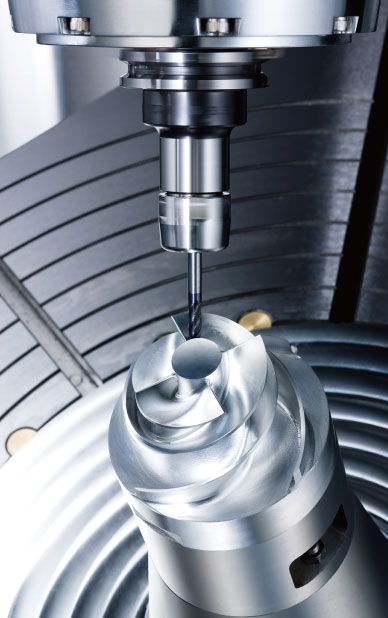

Strength of Ultimate Machining Performance

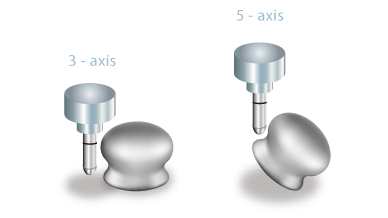

Cutting Free Of Collision & Limit
FMV series is able to apply in various 5-axis simultaneous cutting requirement. FMV series provide ample cutting capability in complex curved surface, like "gas turbine blade, propeller and etc" which is not easy to be done in 3 axes machines.
Upgrade Surface Cutting Precision
FMV 5-axis simultaneous cutting can finish free curvature surface, the cutting position and condition is much better than 3 axes machining. Hence, FMV series can give you higher cutting speed, wider cutting path and more precision on free curve surface.
Shorten Cutting Cycle Time
One set up can finish the most of cutting procedure. FMV series give you better cutting efficiency and reduce the possibility of errors which is happened during workpiece movement within different machines.

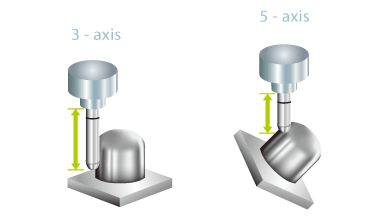

Extend Tool Life
FMV can extend the tool life since contact surface can be at optimum position instead of the limited position on 3 axes machining.
Save Production Facility Cost
With FMV comprehensive ability to handle various cutting application provides all-in-one cutting solution. No need to buy extra machining center and save precious factory space.
