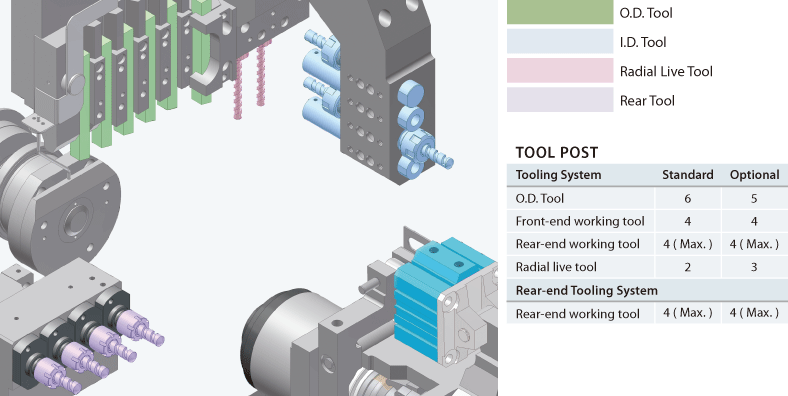

SD SERIES TOOL SYSTEM

SD series is designed with maximum performance, minimum floor space and easy to operation. Also available with live tooling, sub-spindle and C-axis to provide the mostly friendly working condition.

SD series is design with pneumatic system instead of hydraulic system to achieve our goal that with environment friendly, safety and easy to maintenance.

Z-axis is using Japan made high precision linear guide way. It provides high accuracy positioning no matter it is in high or low speed.

Except Z-axis, all the guide ways are dovetail box way that made under heat treatment and super high precision grinding. All the slide ways are bonded with Turcite B to eliminate stick-slip, minimize wear and maintain long term accuracy.

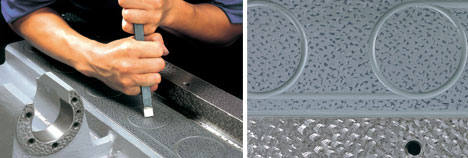

Contact surfaces of all slides, headstock, turret, tailstock, and ball screw bearing housings with the machine bed are hand scraped to provide maximum assembly precision, structural rigidity, and load distribution.

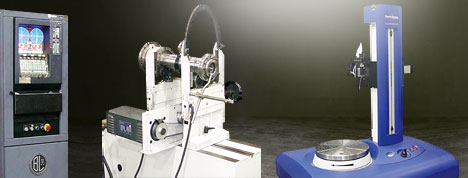

For top component precision, Goodway utilizes top-end measuring and balancing equipment such as; ZEISS 3D measuring system, BL high precision dynamic balancer and many more.
