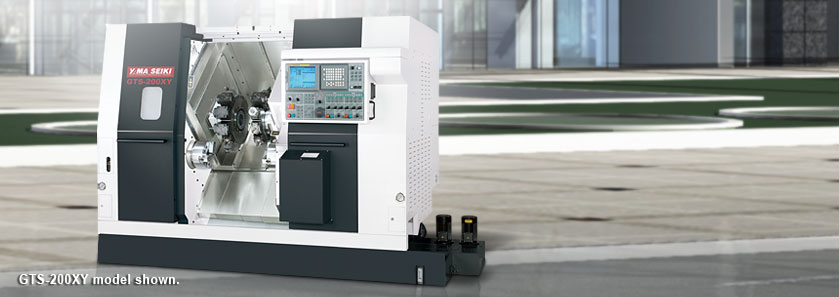

GTS Series

Chuck Size : 6" / 8" / 10"

Bar Capacity : Ø1.65" / Ø2.00" / Ø2.55"

Max. Turning Diameter : Ø 7.08" / Ø 7.08" / Ø 11.02"

Max. Turning Length : 7.08" / 7.87" / 7.87"

Spindle Nose : A2-5 ( 6" ) / A2-6 ( 8" ) / A2-8 ( 10" )

Spindle Motor ( Max. rating ) :
10HP / 20HP AC / 20HP AC / 20HP AC

Spindle Speed Range:
60 ~ 6,000 rpm / 48 ~ 4,800 rpm / 40 ~ 4,000 rpm

Turret : 12 Station x 2

Turret Index Time : 0.2 sec. / adjacent

Live Tooling Stations : 6 Stations
