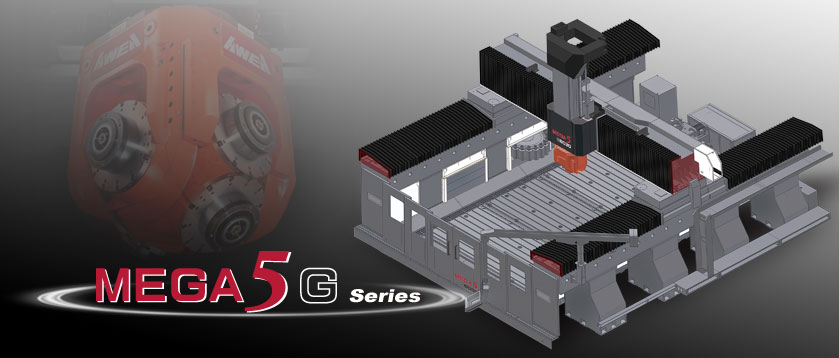

Gantry type structure provides highest structural rigidity and dynamic performance. X-axis travel can expand according to customer requirements, Y-axis travel equipped with patented “ Crossbeam Adjustment Mechanism ” can reach maximum span at 7 m ( 275.5" ).

X-axis dual ball screws, dual servo motors and dual linear scale synchronous controlled driving system ensures ultimate dynamic accuracy.

Extra high rigidity roller type linear guide ways for Y-axis combine benefits of both box way and linear guide ways which offer heavy duty cutting, fast movement and low abrasion capabilities.

Z-axis extra large size linear guide ways along with larger saddle and high rigidity box structure headstock provides best cutting rigidity.

Back lash free rack and pinion driving system is implemented on machine with X travel equal or greater than 6 m ( 236.2" ) or Y travel at 7 m ( 275.5" ). X / Y / Z axes HEIDENHAIN 1 µm resolution linear scale guarantees maximum accuracy of large machines.

20 tools drum type tool magazine ( optional 40 tools ) effectively raises machining efficiency, tool exchange procedure is done outside of machining area to avoid cutting chips contamination on tools.
