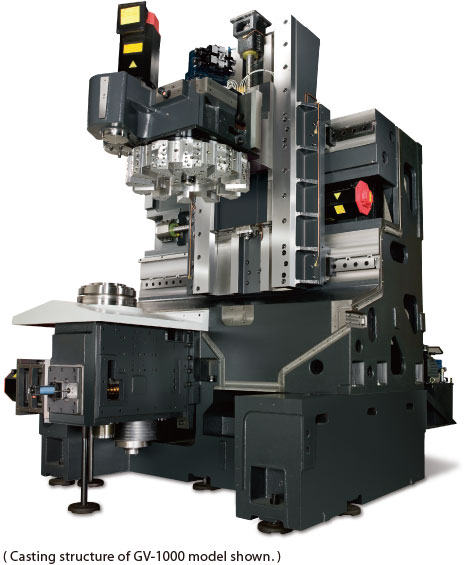

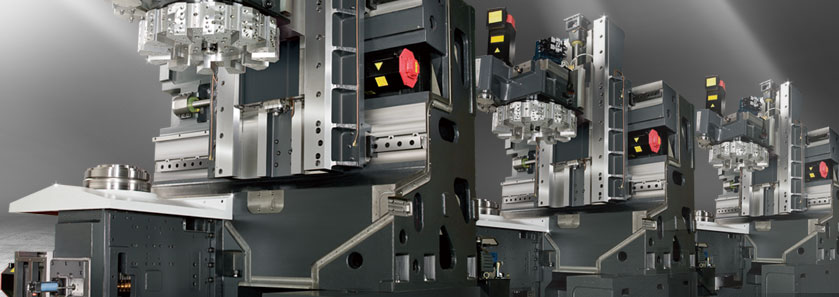

The base and column construction has been made by computer generated design which has increased the stability by 30% over traditional design.

Meehanite grade castings, rib and reinforced provide excellent stability, good thermal expansion and performance for the vertical column.

FANUC alpha i series AC servo motors are fitted to all axes. The alpha Pi intelligent servo motor with its compact size and super high resolution αi series pulsecoder ( standard 1,000,000/rev ) are the perfect partner in this machine tool.

X & Z axes motors are fitted with absolute encoders thus eliminating the need for reference returning the axis before machining.

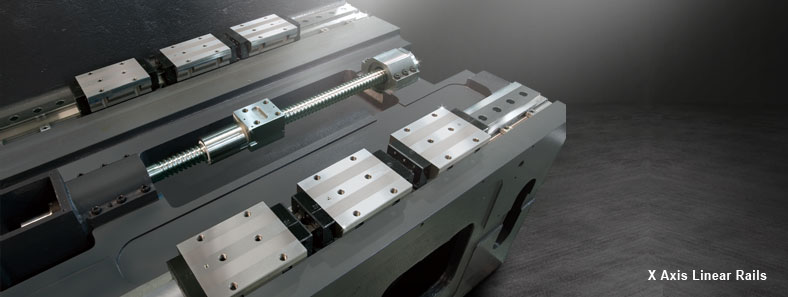

Japan made linear rails ( roller type ) provide excellent stability in operation.

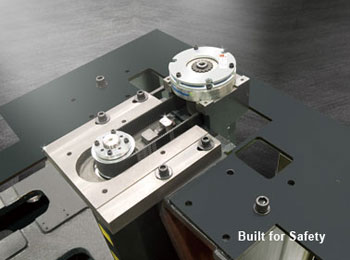

The Z axis is fitted with an independent Japan made brake system.

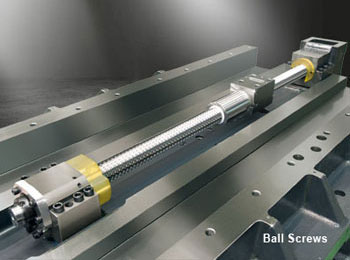

C3 class ball screws ( with a pitch accuracy of 12.7µ / 300 mm ) are fitted with pre-load to X and Z axes.

Contact surfaces of all slides, headstock, turret, tailstock, and ball screw bearing housings with the machine bed are hand scraped to provide maximum assembly precision, structural rigidity, and load distribution.
