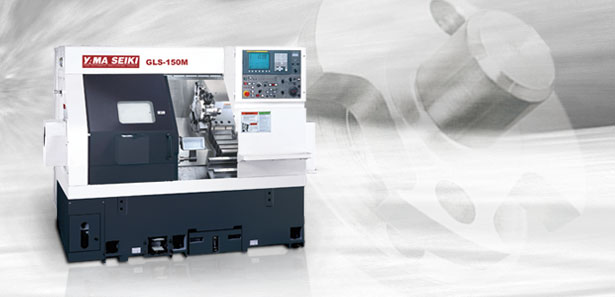

GLS Series

Chuck Size / Bar Capacity : 6" / 1.65"

Max. Turning Diameter x Length : 15.74" x 19.68"

Spindle : A2-5 Taper

Spindle Motor : 15 HP (30 min.)

Turret : 12-Station Servo Indexing ( 3/4" OD Tooling )

Bed Type : 30° Slant Bed

Guide Way Type : NSK Linear Ways

X / Z Axes Rapids : 945 / 1,181 IPM

Sub-Spindle : N / A

Live Tooling : N / A
