ULTIMATE TURNING POWER

Standard rigid tapping feature provides high-speed precision tapping without the use of floating tap holders. Set-up is easier and depth of thread more accurate, permitting maximum productivity for tapping operations.

The precision direct belt drive system provides greater spindle control, flexibility and serviceability. Pulley ratios fine tune the motor’s maximum RPM to match the spindle’s maximum RPM, which result in full output at the lowest RPM possible. Thus, utilizing the full potential of the spindle motor for maximum cutting power.

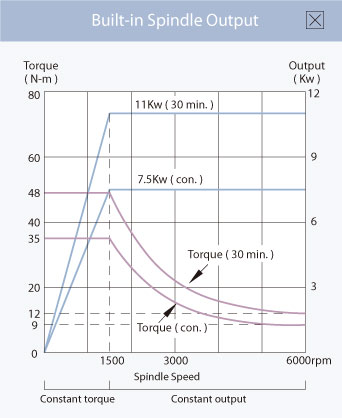

GLS-1500 models are available with built-in spindle motors, which eliminate traditional belts and pulleys. This advance system provides faster spindle response, reduce vibration and power lose, which translate to faster cycle times, higher accuracy, and lower maintenance costs.

Top

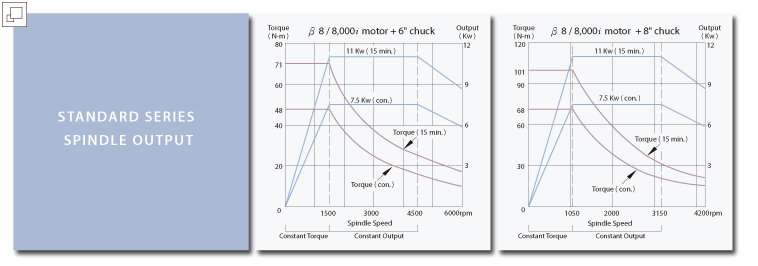

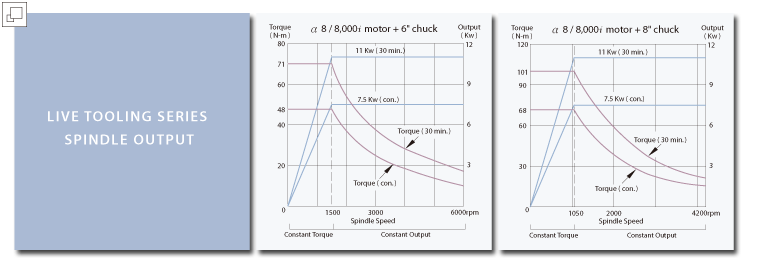

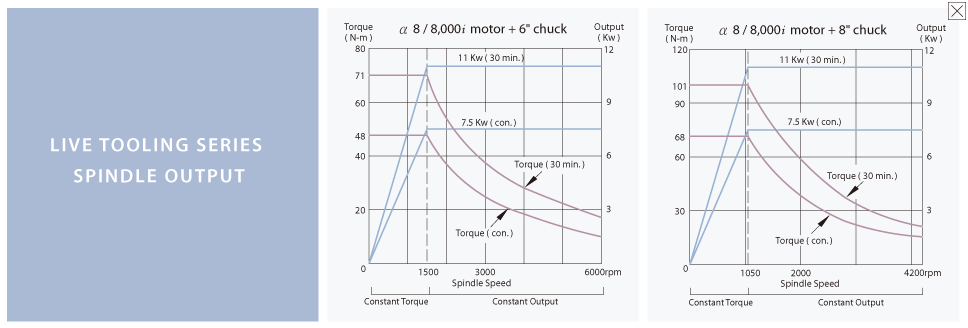

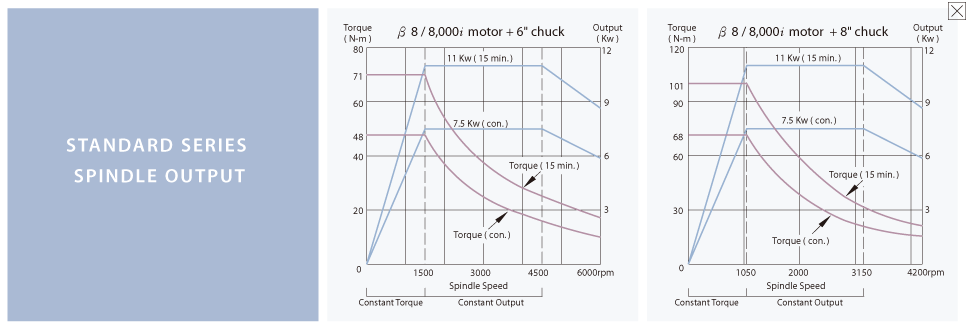

GLS-1500 Series Spindle Output
