Machining capability

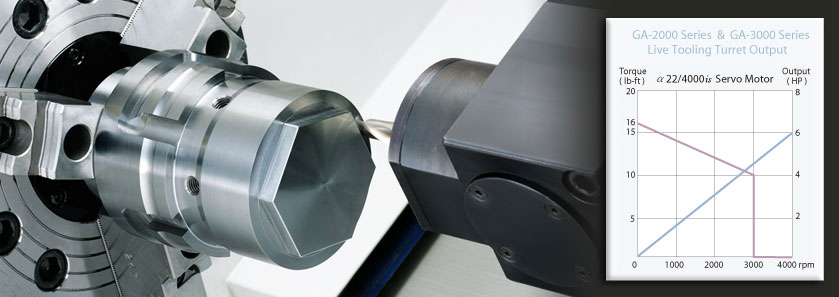

Live Tooling turret Specification

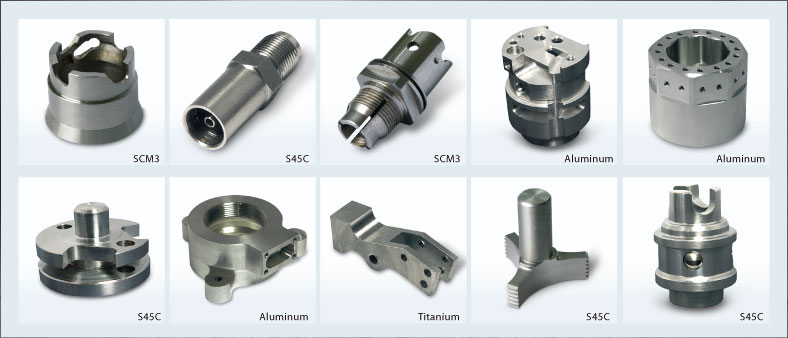

Sample Work Pieces
OD HEAVY CUTTING EXAMPLE
| Models | Tools (inch) |
Spindle Speed ( rpm ) |
Feedrate ( ipm ) |
Cutting Speed ( fpm ) |
Cutting Depth ( inch ) |
|
|---|---|---|---|---|---|---|
| Drill | GA-2000 GA-3000 |
Ø 0.79" | 600 | 2.36 | 124.6 | N / A |
| End mill | Ø 0.79" | 1,000 | 7.87 | 206.7 | 0.5 | |
| Tapping | M16 * P2.0 | 200 | 15.75 | 32.8 | N / A | |
| Raw Material : S45C | ||||||
| Drive Motor Power ( con. ) |
Drive Motor | Max. Tapping Capacity | Max. Milling Capacity | Gear Ration |
|---|---|---|---|---|
| 6 HP ( 4.5 kw ) | FANUC α 22 / 4,000 is | 0.63" ( 16 mm ) | Ø 20 mm | 4 : 3 |
Top

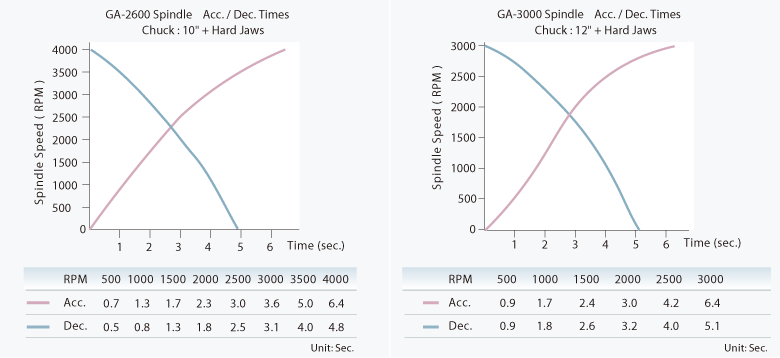

MACHINING PERFORMANCE
OD HEAVY CUTTING EXAMPLE
|
||||||
|---|---|---|---|---|---|---|
| GA-2000 | ||||||
| OD Before Cut | OD After Cut | Spindle Speed | F / Rev. | Depth of Cut | Spindle Load | |
| 1 | 4.25" ( 108 mm ) |
3.77" ( 96 mm ) |
500 RPM | 0.0118" ( 0.30 mm ) |
0.2362" / side ( 6 mm / side ) |
97 % |
| 2 | 3.77" ( 96 mm ) |
3.22" ( 82 mm ) |
550 RPM | 0.0125" ( 0.32 mm ) |
0.2755" / side ( 7 mm / side ) |
112% |
| GA-3000 | ||||||
| OD Before Cut | OD After Cut | Spindle Speed | F / Rev. | Depth of Cut | Spindle Load | |
| 5.67" ( 144 mm ) |
4.72" ( 120 mm ) |
729 RPM | 0.016" ( 0.40 mm ) |
0.4724" / side ( 12 mm / side ) |
65 % | |
