YAMA SEIKI

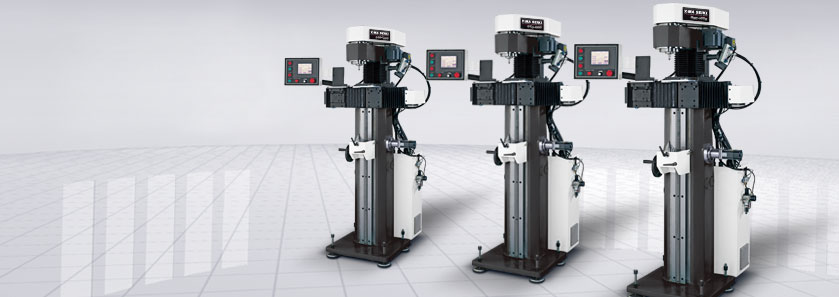

CENTER HOLE CNC CYLINDRICAL GRINDER

EXCLUSIVE GRINDING MOTIONS / 3D synchronizde grinding guarantees high accuracy of center holes.

1. Grinding wheel rotation.

2. Grinding wheel spindle performs planetary motion.

3. Grinding wheel moves reciprocally along the conic surface.

Extra high positioning accuracy center hole achieves less than 10μm of alignment error between center hole and axial center.



Internal taper angle error is less than 10 seconds.

High accuracy work-piece setup permits roundness error less than 1μm.
Center hole surface roughness N4 ~ N6 = 0.2 - 0.8 μm.
Grinding wheel dressing is NC controlled with dressing amount compensation function.
Automatic centering for work-piece clamping simplifies work-piece setup.
Center Hole Grinding Examples
Machine Specifications
CAPACITY GRC-1000 GRC-1500
Center hole dia. Ø 1 ~ Ø 60 mm ( Ø 0.04" ~ Ø 2.3" )
Work-piece clamping range Ø 4 ~ Ø 220 mm ( Ø 0.157" ~ Ø 8.6" )
Work-piece length and weight 50 ~ 1,000 mm, max. 120 kgs ( 1.9" ~ 39.4", max 264.5 lbs ) 50 ~ 1,500 mm, max. 120 kgs ( 1.9" ~ 5.9", max 264.5 lbs )
Center hole angle 60˚
Grinder wheel spindle speed 45,000 rpm/min.

Specifications are subject to change without notice.
