Gear Spindle

Optimum Spindle System

linear_guide_ways Powerful Cutting Capability

lnner-rail embraced structure provides high rigidity and gains good stress flow which minimizes over hang and vibration issues. The Y-axis roller type linear guide ways offset from each other increases structural rigidity reduces distance between spindle to cross beam enhances overall cutting performance.


Centro-symmetric Main Spindle System

Unique head design which the main spindle, spindle motor, ball screw and hydraulic counter weight cylinders are symmetrically placed. Hereby preventing thermal distortion and minimizing deflection. Assuring accuracy and heavy cutting capability.

linear_guide_ways
High Torque Gear Spindle
2-speed super heavy-duty gear box
Floating type hydraulic tool release device eliminates pressure on the spindle bearing when releasing a tool.

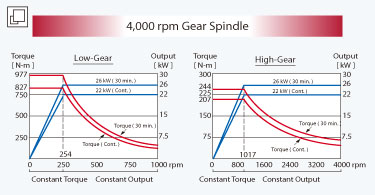

4,000 rpm high torque spindle is equipped with powerful 26 kW motor, delivering maximum torque output of 977 Nm at 254 rpm which can meet with various heavy-duty cutting conditions.
5,000 / 6,000 rpm gear spindle ( Opt. )

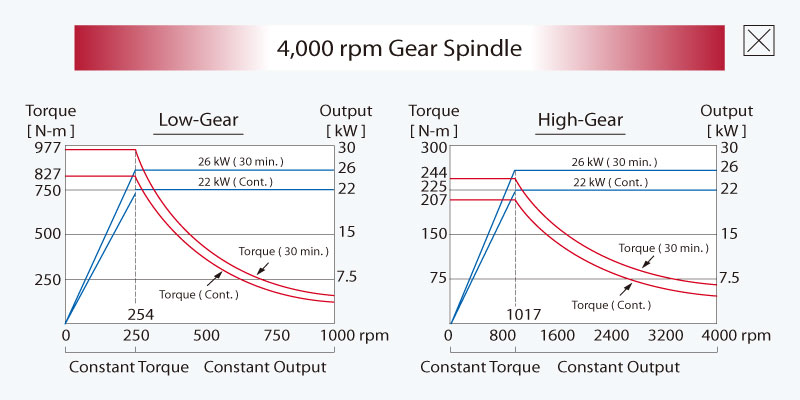

4,000 rpm Gear Spindle

[+]
6,000 rpm Gear Spindle

[+]
High Speed, High Torque Built-in Motorized Spindle
The built-in motor design reduces centrifugal force effect and restrains spindle vibration, which increases the spindle life span and improves long-term machining accuracy.
Floating type hydraulic tool release device eliminates pressure on the spindle bearing when releasing a tool.

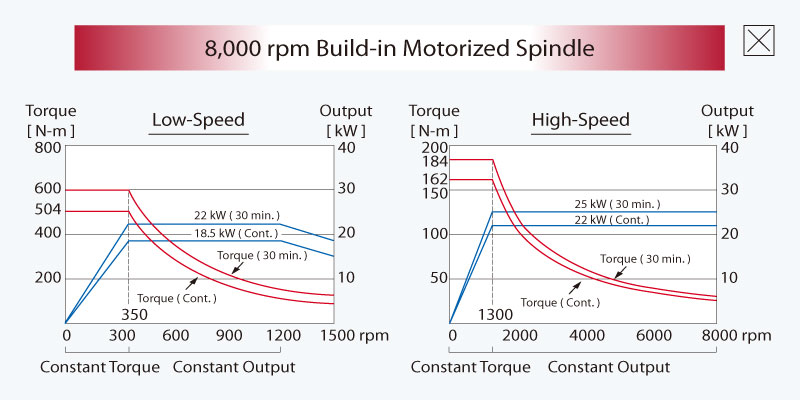

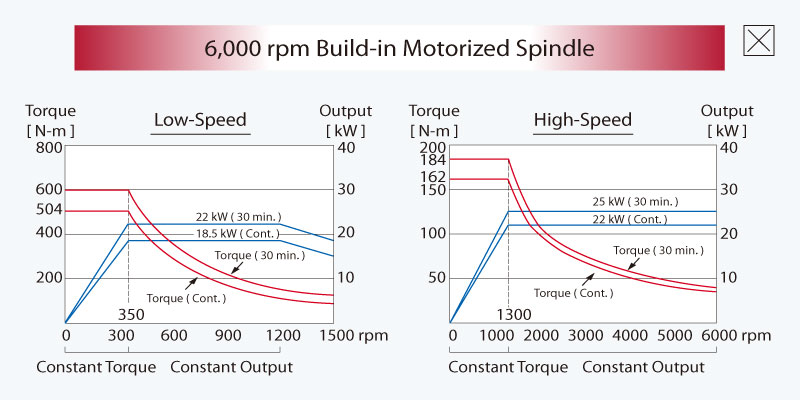

6,000 rpm and 8,000 rpm are available, which provides maximum 600 Nm torque output at 350 rpm to meet with various working conditions.

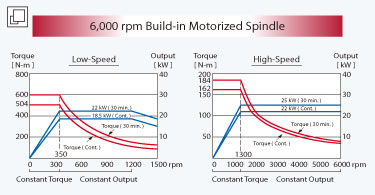

6,000 rpm Build-in Motorized Spindle

[+]

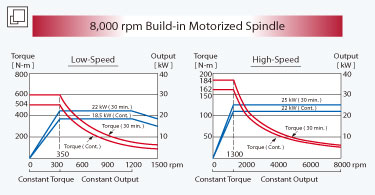

8,000 rpm Build-in Motorized Spindle

[+]
High Speed, High Power Direct-drive Spindle
Direct-drive spindle efficiently separates the heat generated from the motor, which reduces deformation, therefore, increasing machining accuracy.
Floating type hydraulic tool release device eliminates pressure on the spindle bearing when releasing a tool.
8,000 rpm and 10,000 rpm are available, which provides maximum 165 Nm torque output at 1,500 rpm to meet with various high speed working conditions.
8,000 rpm Direct-drive Spindle

[+]
10,000 rpm Direct-drive Spindle

[+]
